Ship Emissions Register

Ro-ro ship · United Kingdom flag · built 1998

ARROW

IMO 9119414 4 reporting years

CO₂ reported 2021
90 t
Fuel burned
28 t
Time at sea
42 h
Emitted at berth
2% of total
Share of year under way
0%
Gross tonnage
7,606

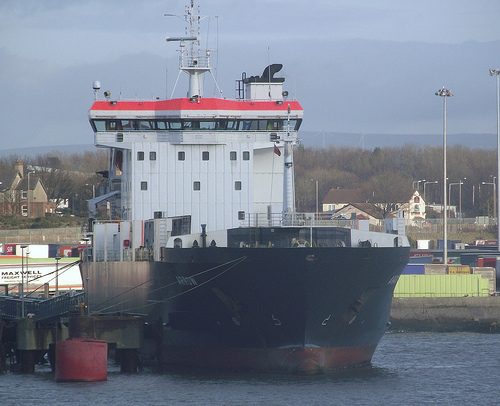

ARROW
Megasam4256, CC BY-SA 3.0 · File

Vessel particulars

IMO number
9119414
Ship type
Ro-ro ship
Gross tonnage
7,606
Length overall
122.3 m
Year built
1998
Flag state
United Kingdom
Port of registry
Douglas
Ice class
IA
Technical efficiency (design)
EIV (23.2 gCO₂/t·nm)
Operator
Condor Ferries, Seatruck Ferries
Efficiency ranking
Not ranked, under_distansegulv (2021)
Verifier
DNV, Germany
Accreditation
VS-16026-01
Compliance document issued
2022-04-13
Compliance document expires
2023-06-30

Flag state is derived from rapportert, not reported directly, and reflects the registry at the time of reporting.

Reported CO₂ by year

2018: 9,812 t20189,8122019: 8,968 t20192020: 7,402 t20202021: 90 t202190

Between 2018 and 2021 reported CO₂ fell by 99.1%.

From 2020 to 2021, emissions fell 98.8% and CO₂ per nautical mile fell 18.6%.Distance was not reported for both years, so activity and efficiency cannot be separated here.

Annual returns2018–2021

Year CO₂ (t) Fuel (t) Distance (nm) At sea (h) At berth (t) kg CO₂/nm EEOI Percentile
2021 90 28 42 2 222.4 359.7 not ranked
2020 7,402 2,317 6,632 343 273.3 463.4 not ranked
2019 8,968 2,813 5,642 417 267.6 462.0 not ranked
2018 9,812 3,081 4,730 1,056 267.3 429.2 not ranked

Where the 2021 emissions occurred

At berthAt berth: 2 t2Voyages to an EEA portVoyages to an EEA port: 32 t32Voyages from an EEA portVoyages from an EEA port: 56 t56

Sources and how to read this

What this page is built on

Reporting years
4
Ranked by efficiency
no
Vessel particulars
4 of 5
Movement data
not observed
Name history
none recorded
Photograph
yes
Sanctions record
none
Inspection record
none in US waters
Caveats that apply to every vessel page

EEOI above 100,000 is withheld. Those values come from returns where reported transport work is near zero, which makes the ratio meaningless rather than extreme. Median across the dataset is around 12.

Emission categories overlap. In the MRV return, emissions at berth are also counted inside the voyage legs, so the categories do not sum to the total. They are shown side by side rather than stacked for that reason.

Distance is derived, intensity is reported. The MRV return publishes CO₂ per nautical mile but not the distance itself, which is null in all 106,564 rows of the source. The distance column is therefore filled from the ranking step, which reconstructs it, and is blank for years where a vessel was not ranked. That is why a row can show an intensity without a distance.

Percentile is within type and year. It is the vessel's position among qualifying ships of the same type that year, where lower is more efficient. A blank means the vessel did not qualify for ranking that year.

Sister ships share a builder, a type and a build year within two years of this vessel. That holds hull and machinery roughly constant and leaves operation as the variable, which is why they are listed before nearest-by-tonnage.

Methane and nitrous oxide start in 2024. They were not reported before that period, so earlier years cannot be compared against them.

Technical efficiency is a design figure fixed at construction. A vessel can hold a good index and still emit heavily by sailing fast, waiting at anchor or carrying little.

Inspection records cover United States waters only. An empty record is not evidence of a clean history elsewhere.

Empty means unreported, never zero. Nothing here is modelled, estimated or interpolated. See the methodology.

Something wrong on this page? See corrections. We do not hold the source registers and cannot amend them, but we will fix anything we have got wrong in reproducing them.
