Container ship · China flag · built 2003

XIN TIAN JIN: CO₂ emissions 2018–2022

IMO 9234343 3 reporting years

CO₂ reported 2022
10,623 t
Fuel burned
3,384 t
Distance
11,907 nm
Time at sea
745 h
Emitted at berth
3% of total
Share of year under way
9%
Gross tonnage
66,433

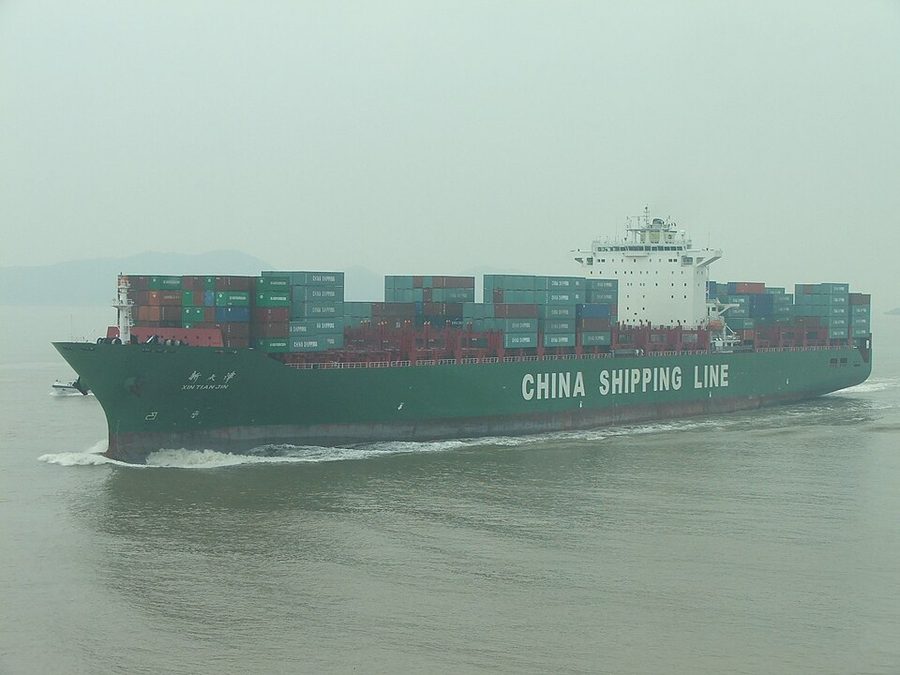

XIN TIAN JIN
SteKrueBe, CC BY-SA 3.0 · File

XIN TIAN JIN against its type

Built in 2003, it is 5 years older than the median container ship on this register, which was built in 2008 (3,088 vessels with a known build year). At 66,433 gross tonnage it is larger than 60% of the other 3,000 container ships with a recorded tonnage. It is one of 31 container ships here under the China flag, 0.9% of the 3,495 on the register. The same builder is recorded for 146 other vessels here, 43 of them container ships. The reported port of registry changed: shanghai (2018), then SHANG HAI (2021–2022).

Its 10,623 t of CO₂ for 2022 is 31% below the median of 15,388 t among the 1,858 container ships on this register that reported for 2022. Per nautical mile it emitted 892.2 kg CO₂, 1.7 times the type median of 539.7 kg. It logged 745 hours at sea against a median of 2,699 hours for its type that year. 3.1% of its 2022 emissions were at berth; the median for container ships was 4.2%. Across 3 years with reported emissions, the highest was 2021 (31,028 t) and the lowest 2018 (2,994 t). Its efficiency percentile within the type went from 56 in 2021 to 57 in 2022 (lower is more efficient). The one comparable vessel listed below with a 2022 return reported a lower CO₂ per nautical mile.

Emissions by year2018–2022

Year CO₂ (t) Fuel (t) Distance (nm) At sea (h) At berth (t) kg CO₂/nm EEOI Percentile
2022 10,623 3,384 11,907 745 332 892.2 19.5 57
2021 31,028 9,905 38,088 2,306 762 814.6 18.1 56
2018 2,994 959 — 258 202 779.6 20.3 not ranked

Vessel particulars

IMO number
9234343
Ship type
Container ship
Gross tonnage
66,433
Length overall
280.0 m
Year built
2003
Flag state
China Wikidata/AIS, undated
Builder
Dalian Shipbuilding Industry Company
Port of registry
SHANG HAI MRV 2022
Technical efficiency (design)
EIV (20.43 gCO₂/t·nm)
Verifier
CHINA CLASSIFICATION SOCIETY, China
Accreditation
0003VV
Compliance document issued
2023-04-27
Compliance document expires
2024-06-30

Efficiency against its own type2022

Position 904 of 1,589 qualifying container ships by EEOI, at the 57th percentile. The dashed line is the type median, 16.9; this vessel reported 19.5.

0255075100more efficientless efficientThis vessel: 57th percentile, EEOI 19.5

EEOI divides emissions by transport work, which for this vessel and year was 545,889,517 tonne-miles over 11,907 nautical miles.

Reported CO₂ by year

2018: 2,994 t20182,9942021: 31,028 t20212022: 10,623 t202210,623

Reported CO₂ in 2022 was 254.8% higher than in 2018, for EU/EEA voyages only. No return is recorded for 2019, 2020, so the series has gaps.

From 2021 to 2022, emissions fell 65.8% while distance sailed fell 68.7%and CO₂ per nautical mile rose 9.5%.That points mainly to how much the vessel sailed, rather than the other.

Where the 2022 emissions occurred

At berthAt berth: 332 t332Voyages between EEA portsVoyages between EEA ports: 628 t628Voyages to an EEA portVoyages to an EEA port: 3,537 t3,537Voyages from an EEA portVoyages from an EEA port: 6,125 t6,125

Sources and how to read this

This page draws on 3 MRV reporting years, an efficiency ranking, 5 of 5 vessel particulars and a licensed photograph. Not found in the sources for this vessel: AIS movements in Norwegian waters, a name history, a sanctions listing and US port state inspections.

Empty means unreported, never zero. How EEOI, distance, percentiles and sister ships are handled is explained under reading a vessel page. Something wrong? See corrections.
