Chemical tanker · Gibraltar flag · built 2005

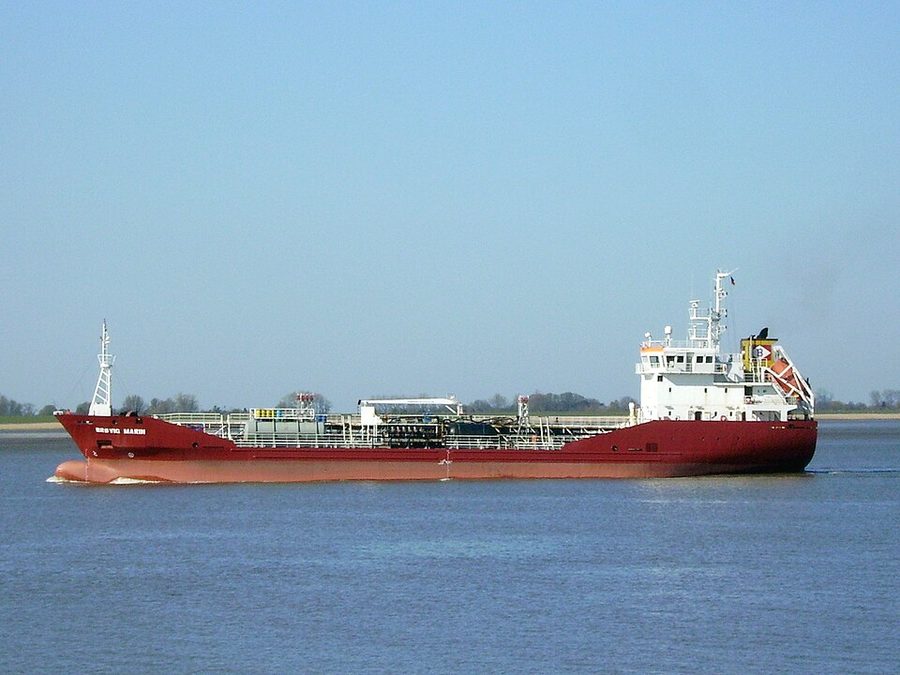

KEY MARIN
IMO 9297228 MMSI 236342000
- CO₂ reported 2018
- 5,088 t
- Fuel burned
- 1,591 t
- Time at sea
- 4,474 h
- Emitted at berth
- 27% of total
- Share of year under way
- 51%
- Gross tonnage
- 2,262
Vessel particulars
- IMO number
- 9297228
- MMSI
- 236342000
- Call sign
- ZDHP4
- Ship type
- Chemical tanker
- Gross tonnage
- 2,262
- Length overall
- 88.0 m
- Beam
- 13.0 m
- Year built
- 2005
- Flag state
- Gibraltar
- Port of registry
- Gibraltar
- Ice class
- IC
- Technical efficiency (design)
- EEDI (22.07 gCO₂/t·nm)
- Operator
- Columbia Shipmanagement Ltd.
- Efficiency ranking
- Not ranked, under_transportarbeidsgulv (2018)
- Verifier
- AMERICAN BUREAU OF SHIPPING HELLENIC SINGLE MEMBER LIMITED LIABILITY COMPANY (ABS HELLENIC S.M. LTD), Greece
- Accreditation
- 1083-2
- Compliance document issued
- 2019-06-28
- Compliance document expires
- 2020-06-30
Flag state is derived from rapportert, not reported directly, and reflects the registry at the time of reporting.
Annual returns2018–2018
| Year | CO₂ (t) | Fuel (t) | Distance (nm) | At sea (h) | At berth (t) | kg CO₂/nm | EEOI | Percentile |
|---|---|---|---|---|---|---|---|---|
| 2018 | 5,088 | 1,591 | — | 4,474 | 1,378 | 120.8 | 82.0 | not ranked |
Where the 2018 emissions occurred
Observed movementsAIS · Norwegian waters
- First seen
- 01 Jul 2025
- Last seen
- 04 Apr 2026
- Days observed
- 88
- Positions
- 9,739
- Median speed
- 9.2 kn
400 points sampled hourly from 9,739 recorded positions. The filled circle is the first observed position, the open one the last. Named squares are ports, shown for orientation; they are not recorded calls.
Positions recorded per month
Norwegian waters only, 01 Jul 2025 to 27 Jul 2026. A gap here means the vessel was not recorded in that area. It is not evidence that the vessel was idle, and not evidence that a transponder was switched off. Voyages elsewhere are outside this dataset.
Sources and how to read this
- Emissions: EU MRV publication (THETIS-MRV), reporting years 2018–2018, published by the European Commission.
- Vessel particulars: Wikidata (CC0) and Wikimedia Commons.
- Movements: Norwegian Coastal Administration open AIS extract.
What this page is built on
- Reporting years
- 1
- Ranked by efficiency
- no
- Vessel particulars
- 4 of 5
- Movement data
- yes
- Name history
- none recorded
- Photograph
- yes
- Sanctions record
- none
- Inspection record
- none in US waters
Caveats that apply to every vessel page
EEOI above 100,000 is withheld. Those values come from returns where reported transport work is near zero, which makes the ratio meaningless rather than extreme. Median across the dataset is around 12.
Emission categories overlap. In the MRV return, emissions at berth are also counted inside the voyage legs, so the categories do not sum to the total. They are shown side by side rather than stacked for that reason.
Distance is derived, intensity is reported. The MRV return publishes CO₂ per nautical mile but not the distance itself, which is null in all 106,564 rows of the source. The distance column is therefore filled from the ranking step, which reconstructs it, and is blank for years where a vessel was not ranked. That is why a row can show an intensity without a distance.
Percentile is within type and year. It is the vessel's position among qualifying ships of the same type that year, where lower is more efficient. A blank means the vessel did not qualify for ranking that year.
Sister ships share a builder, a type and a build year within two years of this vessel. That holds hull and machinery roughly constant and leaves operation as the variable, which is why they are listed before nearest-by-tonnage.
Methane and nitrous oxide start in 2024. They were not reported before that period, so earlier years cannot be compared against them.
Technical efficiency is a design figure fixed at construction. A vessel can hold a good index and still emit heavily by sailing fast, waiting at anchor or carrying little.
Inspection records cover United States waters only. An empty record is not evidence of a clean history elsewhere.
Empty means unreported, never zero. Nothing here is modelled, estimated or interpolated. See the methodology.
